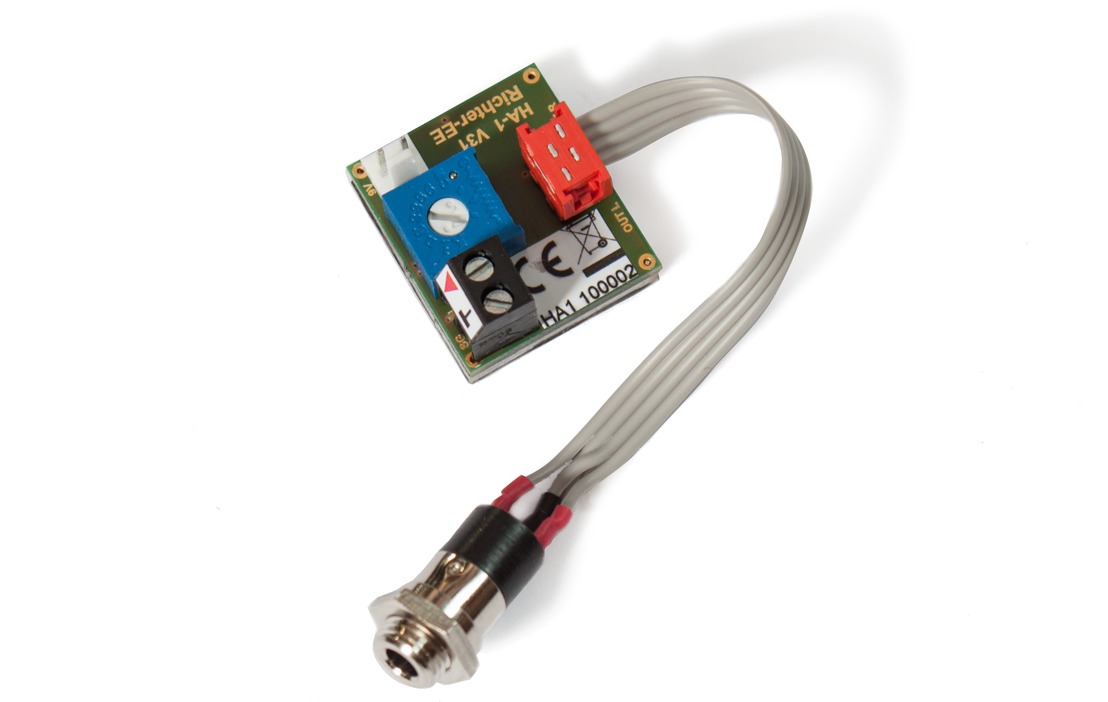

The RICHTER HA-1 onboard headphone amplifier was designed for the use inside a bass or guitar. It provides low noise, smooth, full and precise signal reproduction without loosing any details on sound even in deep bass frequency band. The audio performance was tested with a Sennheiser DT770, 80 Ohm headphone.

The HA-1 is turned on by plugging the headphone into the 3,5mm output jack.
Turning on the HA-1, a recent onboard electronic will be switched on too, provided by the switched ground (GND) of the headphone amplifier.
You will get the active sound from your instrument via headphone.

Features:

Low noise amplifier design with precise and smooth sound reproduction
High impedance input for direct amplification in passive instruments
0,1% precision metal film resistors in the signal path with a resultant noise factor of up to 10 times lower than standard thick film resistors
Low tolerance film capacitors in the signal path featuring lowest distortion and superior linearity
Cermet trimming potentiometer for gain adjust
Screw input terminals with marking for signal-input (red) and GND (black)
The switched ground terminal GND provides to switch on an recent on-board preamp or EQ
Completely shielded and encapsulated - no shielding inside the instrument required

After manufacture each unit undergoes a throughout test and inspection. This ensures each unit passes strictly quality standards.

download EN | DE .pdf

Technical Data:

Input Impedance: 1M?
Headphone Output Inpedance: >= 32Ohm, - recommended 80 Ohm
Frequency Range: 10 Hz to 30 kHz, -3dB
Supply Voltage: 9V to 18V
Current Consumption: 3,6 mA
Gain: 1 to 5 via trim pot.
Weight: 15 g
Dimensions: L 20 x W 20 x H 24 mm
Reverse Polarity Protection
Input screw terminals
